    Large Capacity HDPE Washing Line Material Recycling With High Efficiency

    Ask Lasest Price
    Brand Name : STPLAS
    Model Number : BXPPPE
    Certification : CE SGS
    Price : Contact us
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets/month
    Delivery Time : 60-90 days
    • Product Details
    • Company Profile

    Large Capacity HDPE Washing Line Material Recycling With High Efficiency

    Plastic Bottles Washing Plant HDPE Washing Line HDPE Materials Recycling Plant


    We can design a complete washing line according to your request.
    1. Belt conveyor: Convey material to next process.
    2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)
    3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.
    4. Floating Washer: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)

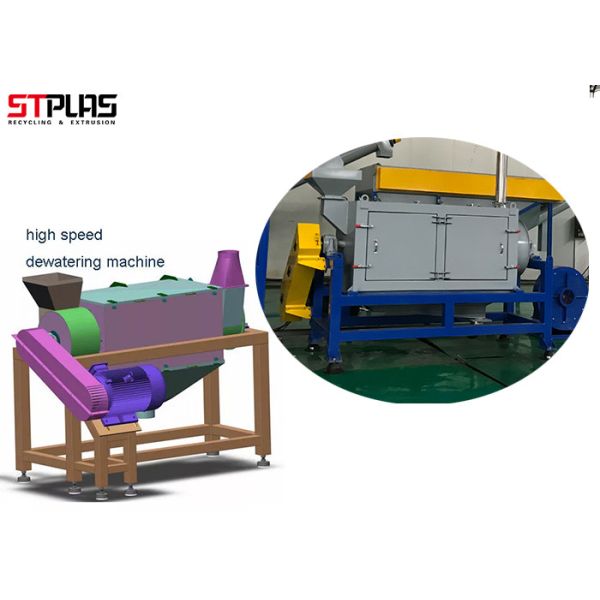

    5. Dewatering machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)
    6.Silo: Storage for final products.


    Main Parts Parameter of 500kg/h HDPE Washing Line:

    NameCrusherFriction WasherDe-watering Machine
    Details

    1. Motor power: 37kw

    2. Screen size: φ16mm

    3. Inlet size:900mm×650mm

    4. Parts which contact with the wet flakes is made of SUS304

    1. Motor power: 11Kw

    2. Rotating speed: 500rpm

    3. Thickness of screen mesh : 2mm

    4. Parts which contact with the wet flakes is made of SUS304

    1. Motor power: 30 kw

    2. Rotary speed of screw: 2000 rpm

    3. Water content : 1-2%.

    4. Parts which contact with the wet flakes is made of SUS304


    More Pictures:


    Contact us for more details!
